Entrepreneurs considering solar module production in a location like Saint Lucia or Barbados have a unique opportunity. The region boasts high solar irradiation, a natural driver for renewable energy.
Yet, the very climate that makes solar power so attractive—the warm, sunny, coastal environment—also poses a significant threat to the technology’s longevity. Standard solar modules, typically designed for more temperate European or inland climates, can degrade rapidly when exposed to the Caribbean’s combination of high humidity, intense ultraviolet (UV) radiation, and corrosive salt mist.
This guide covers the critical material and design considerations for manufacturing solar modules that are not only efficient but also resilient enough to perform reliably for decades in a tropical marine environment. For any new manufacturing venture aiming to build a reputation for quality and durability, understanding these factors is paramount.
The Caribbean Climate: A Unique Challenge for Solar Technology

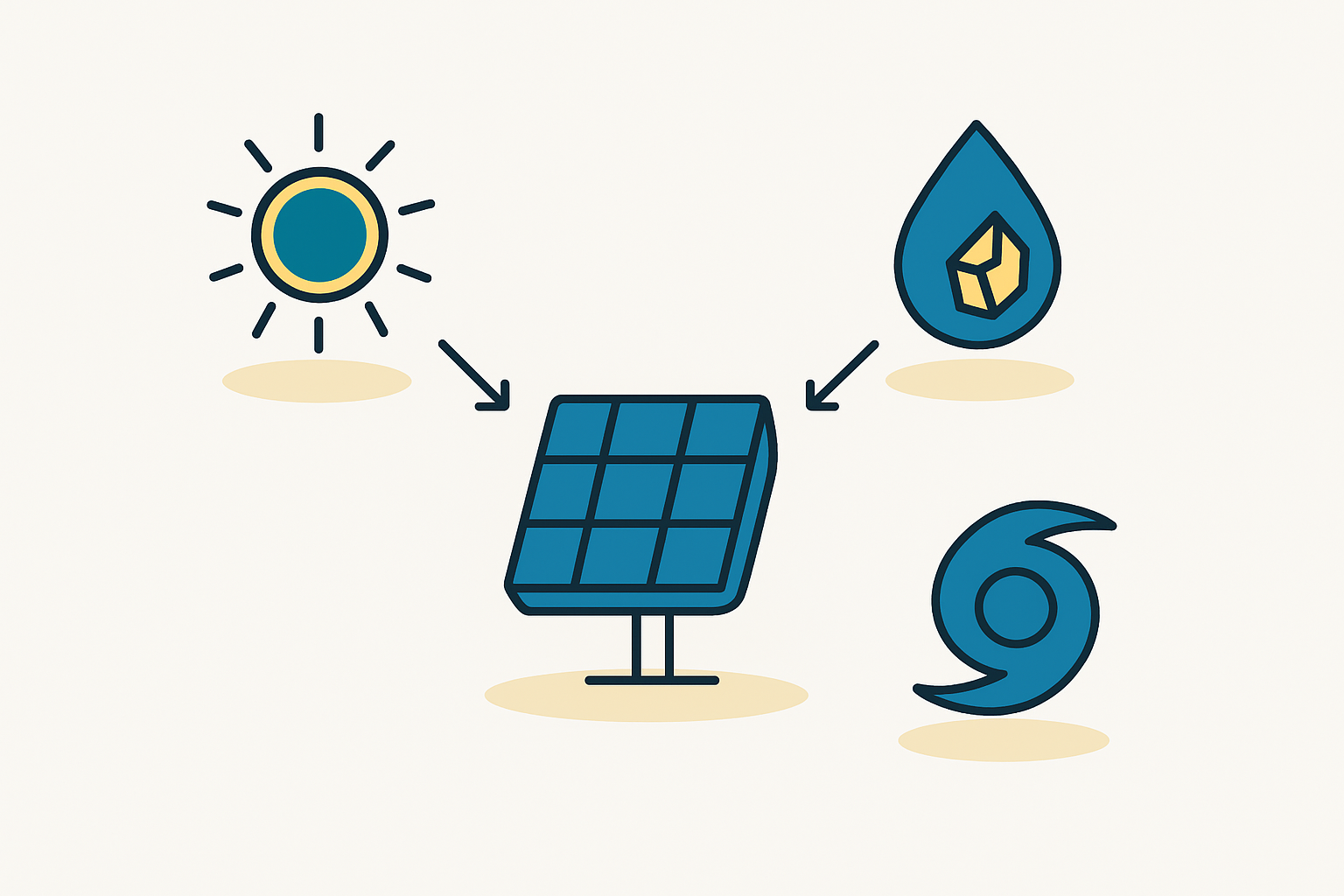

In the Caribbean, solar modules face a relentless combination of environmental stressors. Unlike dry, desert climates, the region presents a ‘triple threat’ that can compromise a module’s performance and structural integrity:
-
High Ambient Humidity: Consistent humidity creates a thin film of moisture on module surfaces, which can accelerate electrochemical reactions and facilitate leakage currents that lead to power loss.
-
Corrosive Salt Mist: Proximity to the ocean means the air is saturated with aerosolized salt particles. These chlorides are highly corrosive to metallic components and can penetrate module seals over time.
-
High UV Radiation and Temperatures: While essential for power generation, intense sunlight also degrades the polymers used in module construction, such as backsheets and encapsulants, making them brittle and susceptible to cracking.
This combination makes a module’s ability to resist moisture ingress perhaps the single most important determinant of its long-term viability. For local economies where energy infrastructure is a critical, long-term investment, producing modules designed to withstand these specific conditions is a strategic imperative.
Key Degradation Risks in a Tropical Marine Environment
Manufacturing a durable product begins with understanding the primary mechanisms of failure. In coastal regions, several key degradation modes are significantly amplified.
Corrosion: The Silent Threat to Performance and Safety
Corrosion is an electrochemical process that degrades metals. Inside a solar module, the aluminum frame, cell metallization (busbars), and internal connections in the junction box are all vulnerable. When salt mist combines with moisture, it forms a potent electrolyte that attacks these components.
This process not only reduces the frame’s structural integrity but can also increase series resistance in the electrical circuit, leading to significant power loss. Research suggests that corrosion-related failures can account for a 5-25% reduction in energy yield over a module’s lifespan. In severe cases, corrosion can compromise the module’s electrical insulation, creating a safety hazard.
Potential Induced Degradation (PID): Amplified by Humidity
Potential Induced Degradation (PID) is a phenomenon where a voltage difference between the solar cells and the grounded module frame causes ion migration. This migration, particularly of sodium ions from the glass, can neutralize parts of the cell and severely reduce its ability to generate power.
High humidity dramatically accelerates PID. Moisture on the module’s surface creates a conductive path for the leakage currents that drive ion migration. In tropical environments, PID can manifest within the first few years of operation if the module is not built with PID-resistant materials. This is a common challenge observed in J.v.G. turnkey projects in Southeast Asia and other humid regions, underscoring the need for specific material choices during manufacturing.
Encapsulant Delamination and Backsheet Failure
The layers of a solar module are bonded together by an encapsulant material, while a polymer backsheet provides rear-side protection. Over time, the combined effects of UV radiation, temperature cycling, and moisture can cause these polymer layers to degrade. The backsheet might become brittle and crack, or the encapsulant can lose its adhesive properties, causing the layers to separate (delamination).
Either failure creates a direct path for moisture and salt to reach the module’s core. This leads to rapid corrosion of the solar cells and internal wiring and can result in complete failure.
Manufacturing for Durability: Material Selection is Paramount
Manufacturers can mitigate these risks by making informed decisions about a module’s core components. The focus must shift from pure cost optimization toward long-term resilience.
Glass-Glass vs. Glass-Backsheet: The Superior Choice for Humid Climates

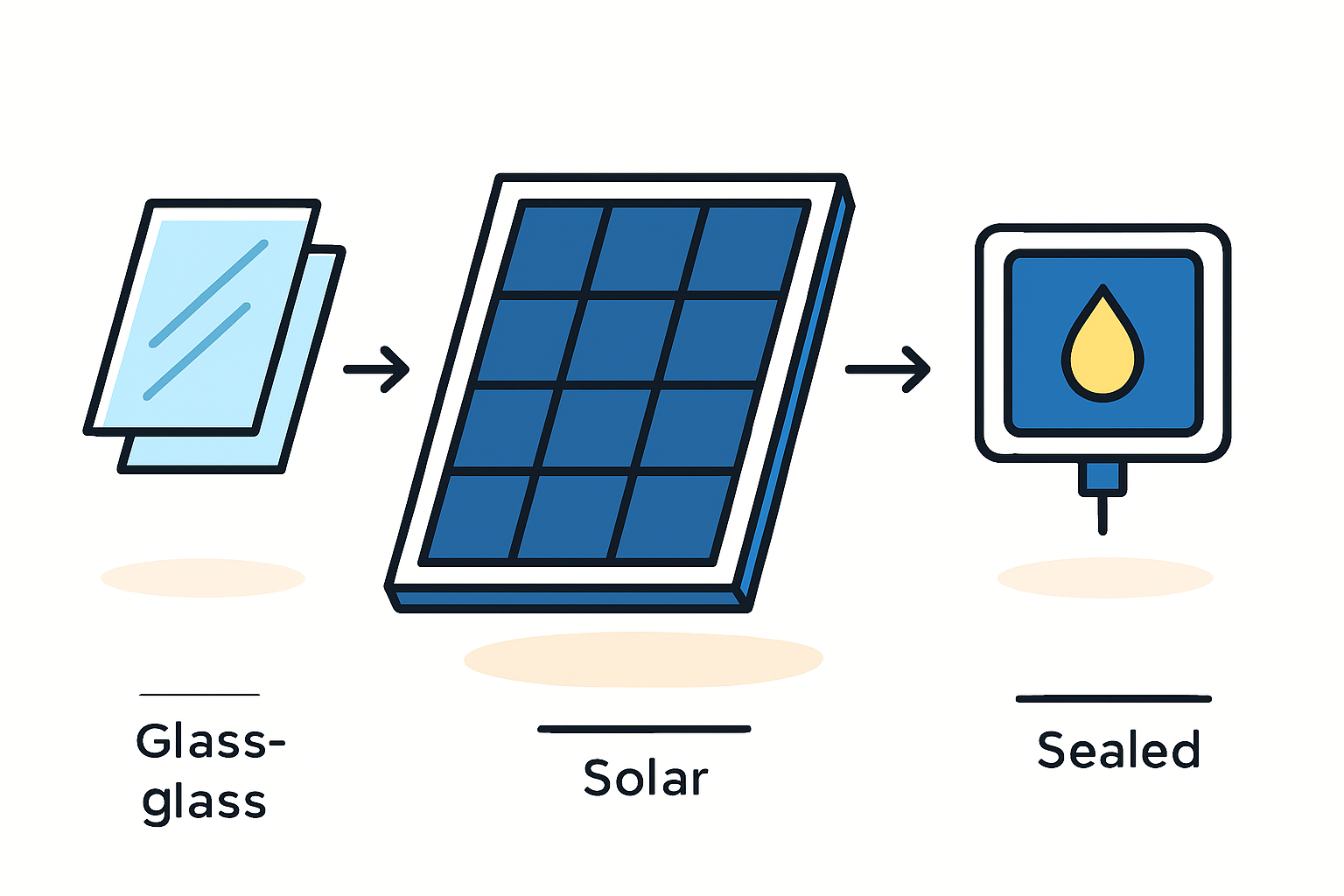

A conventional solar module uses a glass front and a polymer backsheet. A glass-glass module, in contrast, sandwiches the solar cells between two layers of glass. For a high-humidity, salt-mist environment, a glass-glass design offers clear advantages:
-
Impermeability: Glass is virtually impermeable to moisture and oxygen, providing a hermetic seal that protects the cells from the corrosive environment. Polymer backsheets, conversely, have a measurable water vapor transmission rate (WVTR) that allows slow moisture ingress over time.
-
PID Resistance: The symmetrical structure of a glass-glass module, especially when paired with the right encapsulant, is inherently more resistant to PID.
-
Mechanical Durability: Two layers of glass provide superior mechanical strength and rigidity, protecting the cells from physical stress.
A new manufacturer must understand the differences in the bill of materials (BOM) and production process for each module type. This decision fundamentally shapes the factory’s setup and output.
Encapsulation: Why POE Outperforms EVA in Coastal Regions
The choice of encapsulant—the adhesive that bonds the module layers together—is critical. The two most common materials are Ethylene Vinyl Acetate (EVA) and Polyolefin Elastomer (POE).
-
EVA: The industry standard for many years, EVA is cost-effective but susceptible to hydrolysis—a chemical breakdown in the presence of water. This process can produce acetic acid, which further accelerates corrosion inside the module.
-
POE: This newer material has a much lower WVTR and is highly resistant to hydrolysis. Its chemical stability makes it the superior choice for preventing moisture ingress and mitigating PID, especially in glass-glass modules.
While POE may have a slightly higher upfront cost, its ability to extend a module’s effective lifespan by 5-10 years in harsh climates delivers a superior return on investment and a lower Levelized Cost of Energy (LCOE). The selection of these materials has a direct impact on the cost to produce a solar panel.
Frames and Junction Boxes: The First Line of Defense
Even with a robust glass-glass structure, a module’s edges and electrical connections remain vulnerable.
-
Frames: Standard anodized aluminum frames may not suffice. A thicker anodization layer (>20 μm) or specialized corrosion-resistant powder coatings provide a more durable barrier against salt.
-
Junction Boxes: A high-quality junction box with an IP68 rating is essential. This rating ensures the housing and cable glands are sealed against dust and water, protecting the bypass diodes and electrical termination points from moisture-induced failure.
Certification and Testing: Verifying Durability
For market acceptance and project bankability, modules must be certified to international standards. When manufacturing for a marine environment, several specific tests are crucial:
-
IEC 61701 (Salt Mist Corrosion Testing): This standard exposes modules to a concentrated salt fog to simulate a lifetime of coastal exposure. Passing the highest severity levels (e.g., Severity Level 6) is essential for demonstrating true resilience.
-
IEC 62804 (PID Testing): This test verifies that the module’s material composition can withstand the conditions that cause Potential Induced Degradation.
-
IEC 61215 (Design Qualification and Type Approval): This is the fundamental standard for crystalline silicon modules, covering their performance under a range of thermal and mechanical stresses.
A well-planned production line, often designed with an experienced engineering partner, builds in the processes to meet these standards from the outset. This foresight prevents costly rework and certification failures later on.
Frequently Asked Questions (FAQ)
Is manufacturing glass-glass modules significantly more expensive?
The initial capital expenditure for equipment and the material costs for glass-glass modules are moderately higher than for traditional glass-backsheet modules. However, in markets like the Caribbean, the enhanced durability, lower degradation rates, and reduced warranty claims often lead to a superior long-term return on investment. The solar panel manufacturing process for glass-glass modules has specific requirements, particularly for the lamination stage, that must be factored into factory planning.
Can a standard module be used if it has a salt mist certification?
While an IEC 61701 certification is a positive indicator, the severity level it passed is important. Remember, certification involves accelerated testing in a controlled chamber. For a module expected to last 25–30 years in a constantly harsh environment, a design based on inherently resistant materials (like glass-glass and POE) is far more robust than one relying solely on a certificate for a standard-material module.
What is the most common point of failure for modules in tropical island environments?
Based on field data from various tropical regions, the most frequent failure modes are corrosion of the frame and junction box, followed by backsheet degradation and delamination. These issues are often interconnected. For instance, a breach in the frame’s edge seal can accelerate moisture ingress, leading to internal corrosion and PID.
Conclusion: Building a Resilient Solar Manufacturing Business
For an entrepreneur entering the solar manufacturing industry in the Caribbean, success will be defined by resilience as much as by efficiency. A module that performs well on day one is expected; a module that continues to perform reliably after 15 years of exposure to salt, humidity, and sun is exceptional.
By focusing on superior material science—adopting a glass-glass module design, using POE encapsulants, and specifying corrosion-resistant frames and components—a local manufacturer can build a powerful competitive advantage. This approach delivers a product specifically engineered for the regional climate, creating a value proposition that imported, generic modules cannot match. It not only ensures product longevity but also builds a brand founded on quality, reliability, and a deep understanding of the local market’s needs. Further educational resources from pvknowhow.com can offer a structured path for navigating these critical technical and business decisions.
