An entrepreneur standing on the coast of Sao Tome and Principe sees immense potential. With abundant, year-round sunshine, the archipelago seems perfectly suited for solar energy generation.
However, the very elements that create this tropical paradise—the warm sea breeze and humid, moisture-laden air—also create significant technical challenges. These challenges can lead to the premature failure of a solar investment if not properly addressed.
Understanding these environmental factors is critical to planning a successful solar venture. In this region, a project’s long-term viability depends less on the intensity of the sun and more on the technology’s resilience against the climate.

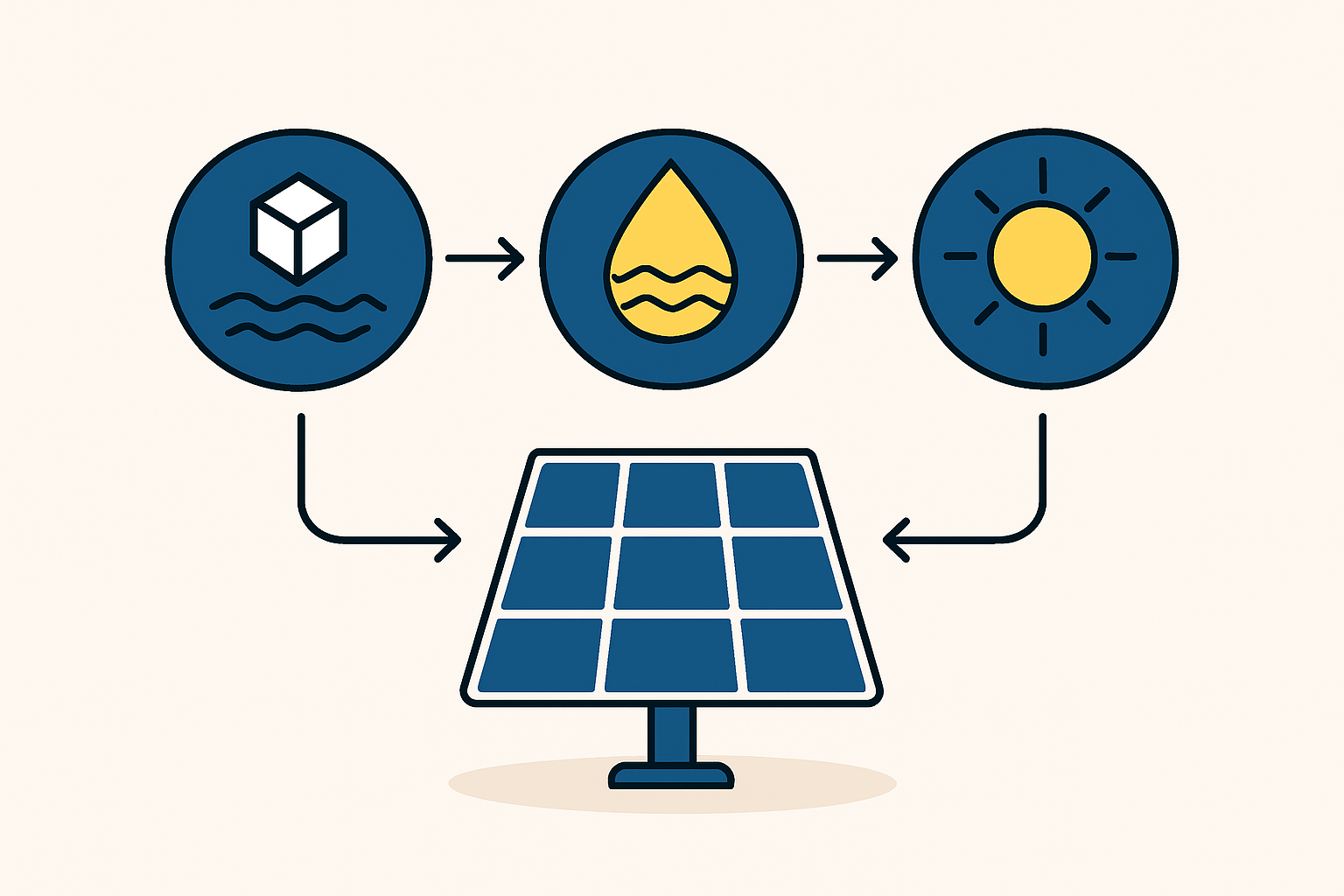

Understanding the Environmental Stress Factors in a Tropical Maritime Climate
Sao Tome and Principe’s climate is defined by high temperatures, averaging 22-31°C, consistently high humidity often exceeding 80%, and a saline coastal environment. These factors combine to create a uniquely demanding operational environment for photovoltaic (PV) modules.
High Humidity and Its Impact on Module Longevity
Constant high humidity poses a primary threat to the durability of solar modules. Water vapor can gradually penetrate the protective layers of a standard panel, leading to several types of failure:
-
Potential Induced Degradation (PID): This occurs when a high voltage difference exists between the solar cells and the module frame, an effect often exacerbated by moisture. It can cause a significant and often irreversible loss of power output.
-
Delamination: Moisture ingress can cause the layers of the module—glass, encapsulant, and backsheet—to separate. This compromises the module’s structural integrity and exposes sensitive solar cells to the elements.
Salt Mist Corrosion: The Silent Threat from the Sea
As an island nation, Sao Tome and Principe’s air is saturated with fine salt particles from the ocean. This salt mist settles on all exposed surfaces, including solar panels, creating a highly corrosive environment.
The consequences include:
-
Corrosion of Frames: Standard aluminum frames can corrode quickly, weakening the module’s structure.
-
Degradation of Junction Boxes: Salt can compromise the seals of junction boxes, allowing moisture to damage the electrical connections within.
-
Electrochemical Reactions: Salt deposits on the glass surface can mix with moisture and lead to reactions that reduce the amount of light reaching the solar cells.
Persistent High Temperatures and UV Radiation
While solar panels need sunlight, excessive heat reduces their efficiency. Every module has a ‘power temperature coefficient’ that defines how much power is lost for each degree Celsius the temperature rises above the 25°C standard test condition. In a consistently warm climate, this efficiency loss can become substantial over the project’s lifetime.
At the same time, intense ultraviolet (UV) radiation adds another layer of stress, degrading protective materials like polymer backsheets and encapsulants until they become brittle and fail.
Key Technology Choices for Durability and Performance
Choosing the right module technology is not an upgrade—it is a fundamental requirement for success in a tropical maritime climate. This decision directly impacts project bankability, operational costs, and the overall return on investment.

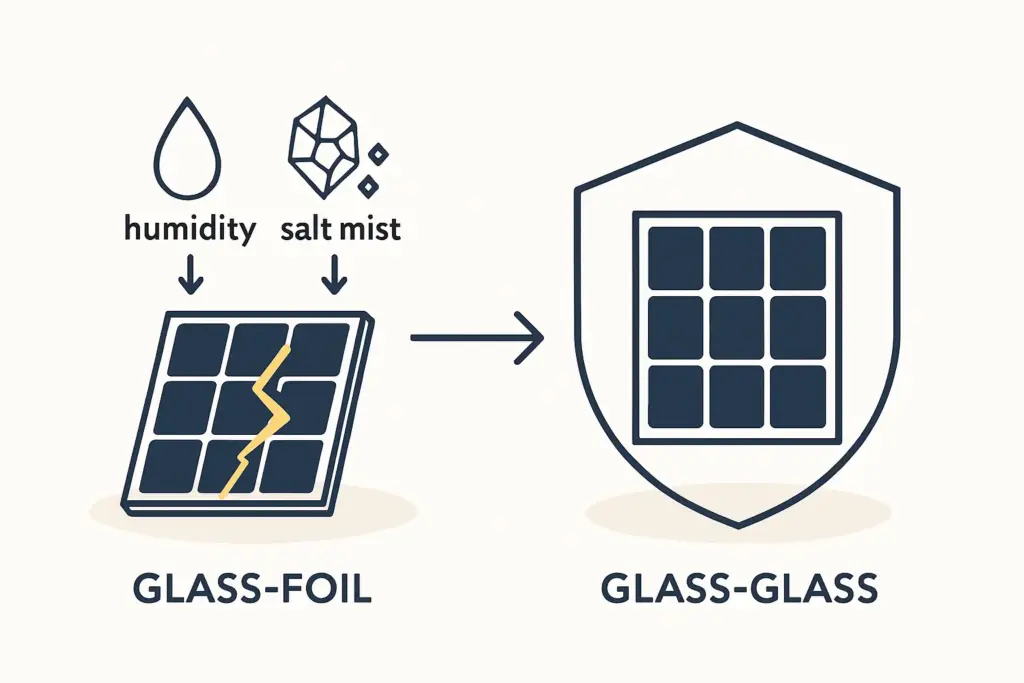

The Critical Decision: Glass-Glass vs. Glass-Foil Modules

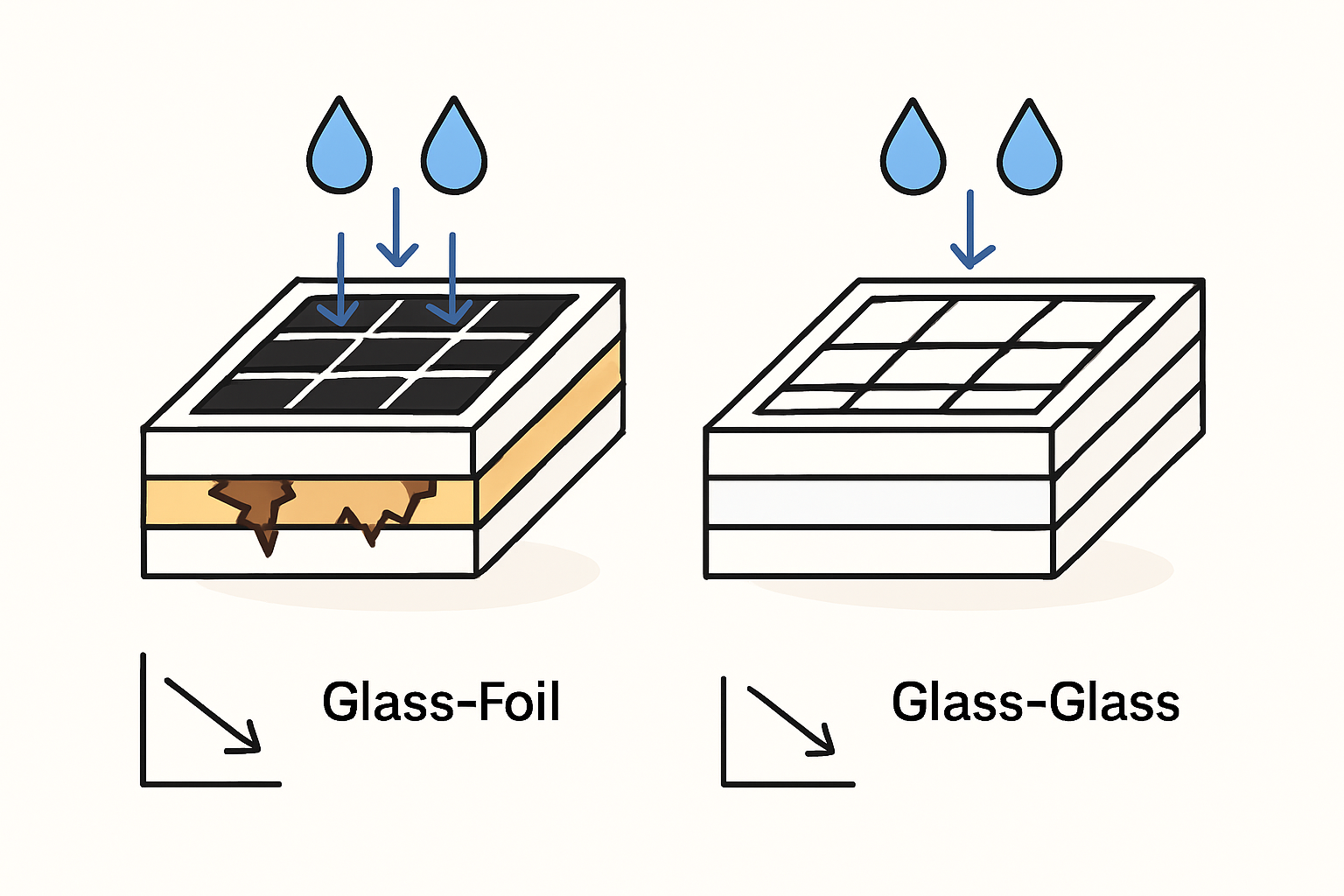

In a high-humidity environment, the most important structural choice is between a Glass-Foil (GF) and a Glass-Glass (GG) module design.
-
Glass-Foil (GF) Modules: This is the conventional design, featuring a glass front, solar cells embedded in an encapsulant, and a polymer-based backsheet. While cost-effective, the polymer backsheet is semi-permeable to water vapor, making it vulnerable in humid climates.
-
Glass-Glass (GG) Modules: This design replaces the polymer backsheet with a second layer of heat-strengthened glass, creating a perfectly sealed, hermetic enclosure for the solar cells.
For a location like Sao Tome and Principe, the advantages of Glass-Glass construction are clear. The rear glass layer is impermeable to moisture and oxygen, effectively eliminating the risk of delamination and significantly reducing the potential for PID. This superior protection ensures a longer service life and more reliable energy production. The choice also influences the necessary module manufacturing machinery, as laminators and handling equipment must be suitable for GG production.
Material and Component Specifications for Coastal Environments
Beyond the core structure, every component must be chosen for its corrosion resistance.
-
Frames: Anodized aluminum frames offer a higher degree of protection against salt mist corrosion compared to standard mill-finish frames.
-
Junction Boxes: A high Ingress Protection (IP) rating, such as IP67 or IP68, is essential. This certifies the junction box is completely sealed against dust and can withstand water immersion, keeping electrical connections safe and dry.
-
Sealants and Encapsulants: Using high-quality, UV-stable materials for sealing the module edges and encapsulating the cells is crucial for preventing degradation and maintaining the laminate’s integrity over decades.
The Business Implications of Technology Selection
Opting for lower-cost, standard modules in a harsh environment is a false economy. The initial capital expenditure may be lower, but the operational costs, maintenance demands, and revenue losses from premature degradation and failure will far outweigh any initial savings.
A robust financial model must account for the higher upfront cost of durable technology. This investment translates into a lower Levelized Cost of Energy (LCOE) over the project’s lifetime, thanks to higher reliability, sustained performance, and reduced replacement costs. A comprehensive business plan is essential to accurately forecast these long-term benefits. Experience with turnkey solar production lines, such as that of J.v.G. Technology GmbH, shows that adapting product specifications to the target market’s climate is a cornerstone of a successful manufacturing strategy.
Frequently Asked Questions (FAQ)
Are Glass-Glass modules significantly more expensive to produce?
Glass-Glass modules have a moderately higher initial material cost because the polymer backsheet is replaced with glass. However, their extended lifespan, superior durability, and higher energy yield in harsh climates ultimately lead to a better long-term return on investment and a lower LCOE.
What specific certifications should an investor look for?
For coastal environments, the most critical certification is IEC 61701: Salt Mist Corrosion Testing. This standard subjects modules to a rigorous salt spray test to verify that their components can withstand long-term exposure. Investors should insist on modules that have passed the test’s highest severity level.
Can standard Glass-Foil modules be used if they have special protective coatings?
While some coatings offer a degree of surface protection, they don’t address the fundamental problem of moisture permeating the polymer backsheet over time. In a consistently high-humidity environment, Glass-Glass construction provides a far more reliable and permanent solution against moisture ingress.
Are these technical considerations applicable to other tropical islands or coastal regions?
Absolutely. The principles outlined for Sao Tome and Principe apply to any project in a tropical or maritime climate, including the Caribbean, Southeast Asia, the Pacific Islands, and the coastal regions of Africa and Latin America.
Conclusion: Building a Resilient Solar Future in Sao Tome and Principe
The success of a solar energy venture in a unique climate like Sao Tome and Principe hinges on engineering decisions made long before the first panel is installed. By prioritizing technology designed for resilience—specifically Glass-Glass modules with corrosion-resistant components—entrepreneurs can build projects that not only withstand the elements but also deliver reliable, clean power for decades. This thoughtful, climate-first approach transforms environmental challenges into a competitive advantage, paving the way for a sustainable and profitable solar future.
