Solar Panel Raw Materials Used To Make Solar Panels

Solar technology has come a long way since it was first discovered in 1839 by French physicist Edmond Becquerel. The modern era of the technology didn’t begin until 1950 however when American scientists started using silicon to make photovoltaic cells.

Since then, solar energy has become cheaper while PV panels have become more efficient, lighter, and much improved in look. This has prompted a surge in demand for solar. The global solar power market is expected to more than double in size from 2021 to 2029. Good news if you are in manufacturing and supply of panels.

But what is in a PV module and how is it made? In this article, we look at solar panel raw materials that used to make solar panels. We look at the raw materials of a PV module including busbars, and junction boxes to the cell itself.

A solar, or photovoltaic (PV) module as it is also called, is a device that converts sunlight into electricity. It is the key component of a solar energy system.

Solar panels convert sunlight into electricity and then send the electricity to an inverter as direct current (DC) electricity. The inverter then converts the electricity into alternate current (AC) electricity which most home appliances use.

A PV module consists of several components which include:

Find out the first steps for your solar module production (free e-course)

• Perfect Size: the peerfect size for your factory!
• Automation: full or low automation?
• Total investment: waht will be the invest in machines, building, ramp up and so on?
• Business Plan: how to make the business plan for investors!

Sign up below to get access to your FREE Product

GET ACCESS

__CONFIG_colors_palette__{"active_palette":0,"config":{"colors":{"30800":{"name":"Main Accent","parent":-1},"f2bba":{"name":"Main Light 10","parent":"30800"},"trewq":{"name":"Main Light 30","parent":"30800"},"frty6":{"name":"Main Light 45","parent":"30800"},"flktr":{"name":"Main Light 80","parent":"30800"}},"gradients":[]},"palettes":[{"name":"Default","value":{"colors":{"30800":{"val":"rgb(59, 136, 253)","hsl":{"h":216,"s":0.98,"l":0.61}},"f2bba":{"val":"rgba(59, 136, 253, 0.1)","hsl_parent_dependency":{"h":216,"s":0.98,"l":0.61,"a":0.1}},"trewq":{"val":"rgba(59, 136, 253, 0.3)","hsl_parent_dependency":{"h":216,"s":0.98,"l":0.61,"a":0.3}},"frty6":{"val":"rgba(59, 136, 253, 0.45)","hsl_parent_dependency":{"h":216,"s":0.98,"l":0.61,"a":0.45}},"flktr":{"val":"rgba(59, 136, 253, 0.8)","hsl_parent_dependency":{"h":216,"s":0.98,"l":0.61,"a":0.8}}},"gradients":[]},"original":{"colors":{"30800":{"val":"rgb(59, 136, 253)","hsl":{"h":216,"s":0.98,"l":0.61}},"f2bba":{"val":"rgba(59, 136, 253, 0.1)","hsl_parent_dependency":{"h":216,"s":0.98,"l":0.61,"a":0.1}},"trewq":{"val":"rgba(59, 136, 253, 0.3)","hsl_parent_dependency":{"h":216,"s":0.98,"l":0.61,"a":0.3}},"frty6":{"val":"rgba(59, 136, 253, 0.45)","hsl_parent_dependency":{"h":216,"s":0.98,"l":0.61,"a":0.45}},"flktr":{"val":"rgba(59, 136, 253, 0.8)","hsl_parent_dependency":{"h":216,"s":0.98,"l":0.61,"a":0.8}}},"gradients":[]}}]}__CONFIG_colors_palette__

I have read the Privacy policy and I agree. With submitting the request we will give you access to our free members area and we will contact you soon to answer your request.

• Solar cells
• Busbars
• Encapsulant
• A backsheet
• A frame
• A glass
• A junction box

These components are assembled in a solar panel manufacturing process that involves several steps and machines. There are several machines used in renewable energy production or solar production. They each complete a step in the process of manufacturing a solar module.

For example, stringers connect the solar cells together, foil cutters cut and place the backsheet onto the module while framers place the module inside a frame. For a complete review, read our article on solar panel machines.

PV panels are the most important part of solar energy systems. Equally, solar cells are the most important component of a PV panel. They are responsible for capturing the energy from the sun and converting it into usable electricity.

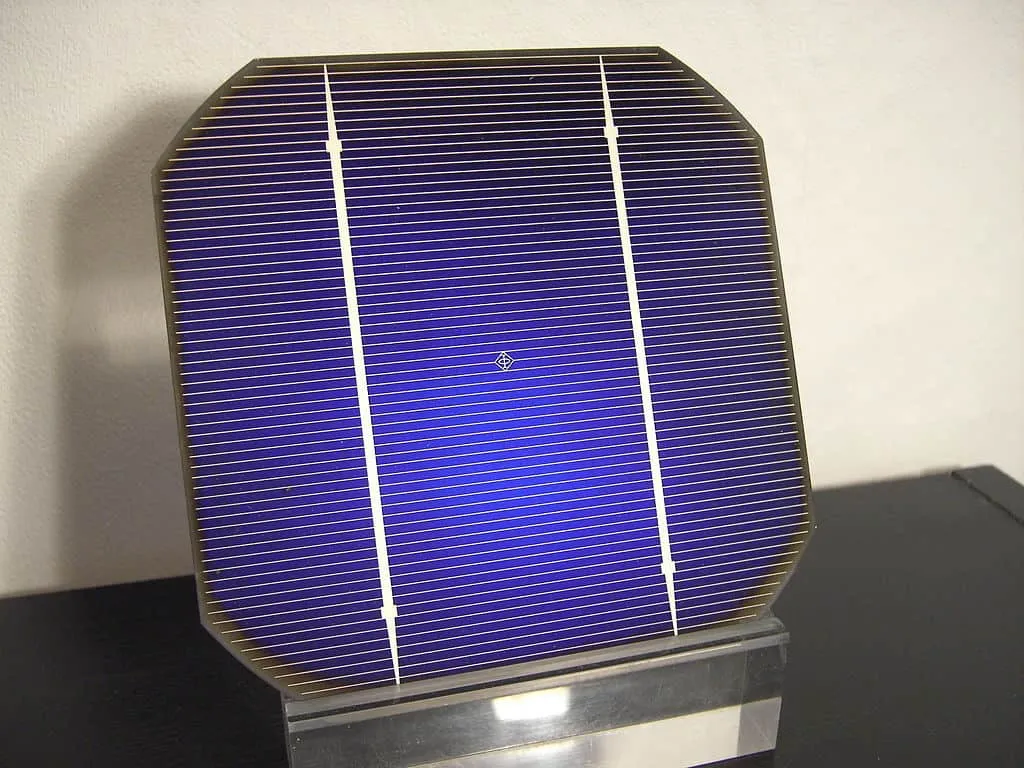

A solar module consists of multiple solar cells, typically 60 or 72, wired together. A solar cell is made from a thin wafer of silicon. Each cell is connected to the other cells in the module by thin wires known as busbars.

Solar cells are the most expensive part of a solar panel. The quality of solar cells varies depending on the material it is made from. Silicon cells are more expensive than thin-film cells. While they cost more, they do, however, produce up to twice as much energy. This is the main reason why most solar panel production focuses on silicon panels. 90% of solar PV panels in production on the market are silicon.

Busbars are thin strips of conductive material that collect and distribute the electric current generated by the solar cells in a solar module. Busbars are typically made of copper or aluminum. They are on the surface of the solar cells and are responsible for connecting the cells together to form a circuit.

A solar cell can have between 3 to 6 busbars. Increasing the number of busbars increases its efficiency at collecting and distributing the electric current generated by a cell. This is because busbars reduce resistance and power loss by reducing the distance the electric current has to travel.

Solar PV modules need to be protected from environmental factors such as moisture, dirt, and physical impacts while allowing sunlight to be absorbed by the solar cells. This is where the glass comes in.

Modules do not use ordinary glass, however. Solar cells are protected by tempered glass, which is 3.2mm thick and up to six times stronger and more durable than regular glass.

The glass is also treated with an anti-reflective coating to reduce reflections and increase the amount of sunlight reaching the solar cells.

The primary purpose of solar panel glass is to transmit as much sunlight as possible into the module while ensuring a high solar radiance transmittance and a low reflection rate.

The backsheet is located on the back of the module. It is typically made of a multilayer polymer material like polyvinyl fluoride (PVF) or ethylene-tetrafluoroethylene (ETFE). The backsheet provides insulation, which helps to prevent electric shocks and short circuits.

The primary purpose of the backsheet is to protect the solar cells and other components of the module from moisture, dirt, and other environmental factors. This lengthens the lifespan of the module and maintains its performance over time.

The backsheet can also help to reflect light back onto the solar cells, increasing the module’s efficiency.

The encapsulant is a thin film of polymer that protects the solar cells from moisture, dirt, and other environmental factors.

The encapsulant also provides mechanical support for the solar cells, by holding them in place and preventing them from moving or breaking. The encapsulant is usually applied to the back of the module.

The frame of a solar module holds all of the other components together and gives the module its structure. It is usually made of aluminum or stainless steel and wraps around the edges of the module.

The frame also provides a convenient place to mount the module, as well as a way to secure the other components.

The junction box is a small box at the back of the module that houses the electrical connections between the solar cells and the external circuit. It is usually made of plastic or metal and is designed to protect electrical connections from moisture and dust.

The junction box connects the module to the rest of the solar power system.

From the solar cells and busbars to the junction box and frame, each part plays an important role in the overall performance of the module.

Quality materials ensure you produce good quality solar panels. Faulty solar cells or busbars can increase the internal resistance of the solar module and cause it to heat up. This can create a potential safety hazard.

Poor-quality encapsulants, backsheets, or frames will wear away easily and allow moisture to seep into the module and damage the solar cells. A faulty junction box or connectors will reduce the output of the solar module.

This is why it’s critical for manufacturers to find good suppliers of raw materials. Module manufacturing is increasingly becoming a very competitive industry. Companies that want to compete at the highest levels are the ones that will consistently produce good quality products and the first step to achieving this is sourcing quality materials.
